IR Audio

July 29, 2009



I thought it would be cool to send an audio signal via infrared. I used a RadioShack IR transmitter and receiver. I browsed for amplifier circuits. I used a microphone from an earlier project and a speaker from a computer.

I'm still testing various parts of the circuit, but it does work. I've been able to transmit the signal across my kitchen counter top.

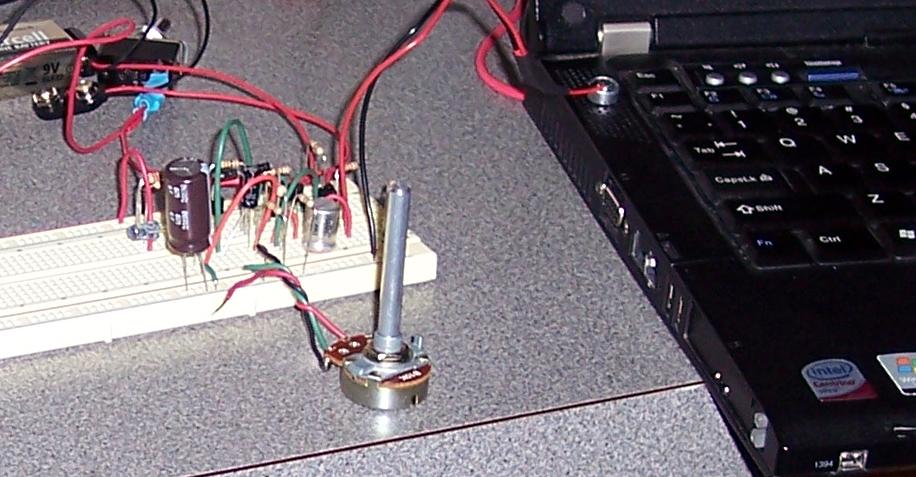

Receiver

click to enlarge/reduce

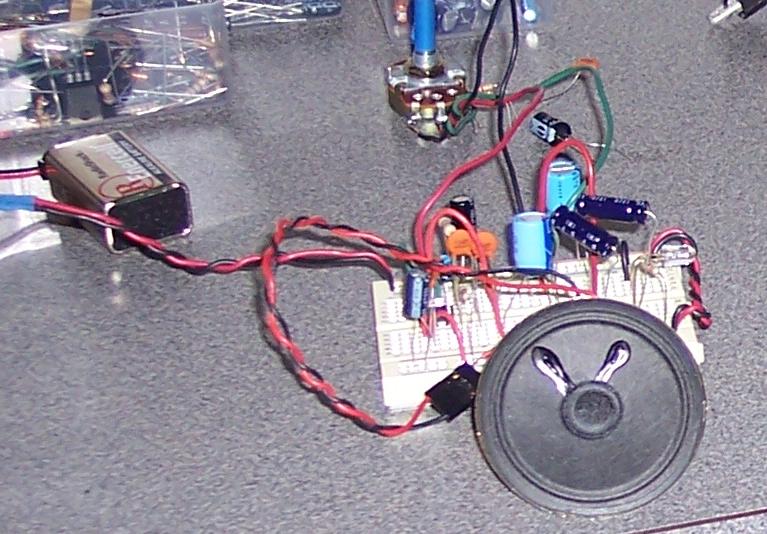

Transmitter

click to enlarge/reduce

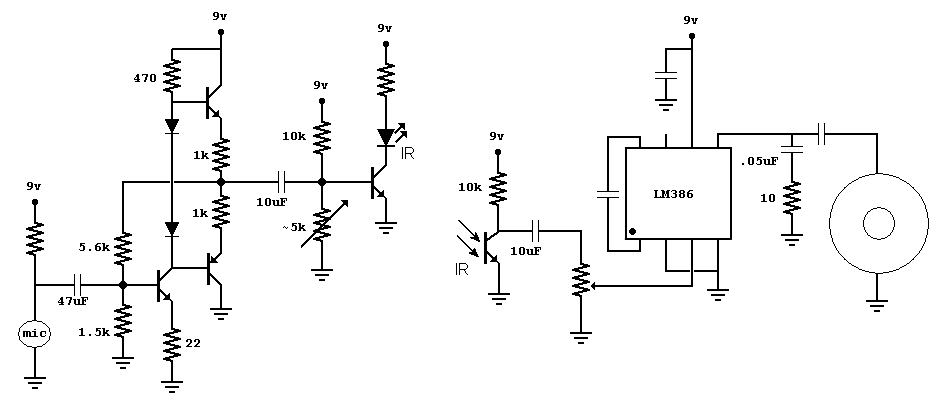

click to enlarge/reduce
Some links I referenced in this project:

  • http://www.uashem.com/pageid-524.html
  • http://www.epanorama.net/circuits/microphone_powering.html#basic
  • http://braincambre500.freeservers.com/LM386%20Audio%20Amp.htm
